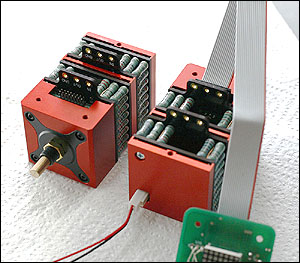

64 steps relay based ladder type attenuator

Our new great design based on HQ Omron relays instead of moving contacts.
We even designed our own optical encder which guarantee longlife operation.
Remote control is included.

Switching type: MBB (Make Before Break)
Number of steps: 64
Attenuation range: -64 dB ... 0 dB
Attenuation per step: steps 1dB/step
Switching device: Omron relays

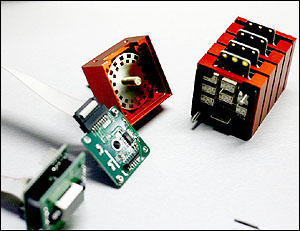

Custom made optical encoder guarantee long life operation
Extremely short signal path
Channel matching: +/-0.1 dB
Mechanical life: > 50 000 cycles
CNC machined PA11 aluminium body
Precision ball bearing support
Shaft diameter: 6 mm
Voltage: 5V/1A

Remote control with functions: Vol+, Vol-, Mute, Display (5 settings + off)

Allready used by:
PerlaAudio -  https://www.perlaaudio.com
Valvet - www.valvet.de
Don Sachs Audio -http://www.dsachsconsulting.com

Danish Audio Design - http://www.dad-int.com
Halgorythme - http://www.halgorythme.com
